Radiator Hot at Top and Cold at Bottom

A radiator that’s hot at the top and cold at the bottom usually indicates poor circulation, most often from trapped air, sludge (magnetite) settling in the base, or a partially closed/faulty valve. Quick checks include ensuring boiler pressure is around 1–1.5 bar when cold, confirming the TRV and lockshield are open, and bleeding the radiator if it gurgles. If bleeding doesn’t help and the lower panel stays “two-tone,” flushing may be needed; further practical checks follow for Radiator Hot at Top and Cold at Bottom.

Key Takeaways

• A radiator that is hot at the top and cold at the bottom usually indicates poor water circulation due to sludge buildup or a partially closed valve.
• First, check the boiler pressure is correct (about 1–1.5 bar when cold) and ensure both radiator valves are fully open.
• Bleed the radiator if you hear gurgling or the top feels cooler, as trapped air can reduce heating performance.
• If bleeding doesn’t help, suspect sludge: dark, gritty bleed water, dull sound when tapping the bottom, and a hot inlet with a cool return pipe.
• Fix sludge with a DIY flush, chemical flush, or professional powerflush, and addan inhibitor to reduce future sediment.

Radiator Hot at Top, Cold at Bottom: Likely Causes

Two common faults usually cause a radiator to be hot at the top but cold at the bottom: trapped air and restricted water flow. Air collects in the upper channels, letting heat rise but blocking circulation through the lower sections, so the base stays cool even while the top warms quickly.

Restricted flow is the other frequent culprit. Sludge, rust, and limescale settle in the bottom of the radiator and in nearby pipework, narrowing passages and slowing the hot-water sweep that should heat the whole panel.

A partially blocked return line can create the same top-heavy pattern by starving the lower half of moving water. Poor balancing across a multi-radiator system can also bias flow toward the easier routes, leaving some units at the bottom underfed. In older systems, internal baffles or deposits can unevenly channel heat, producing a sharp temperature split.

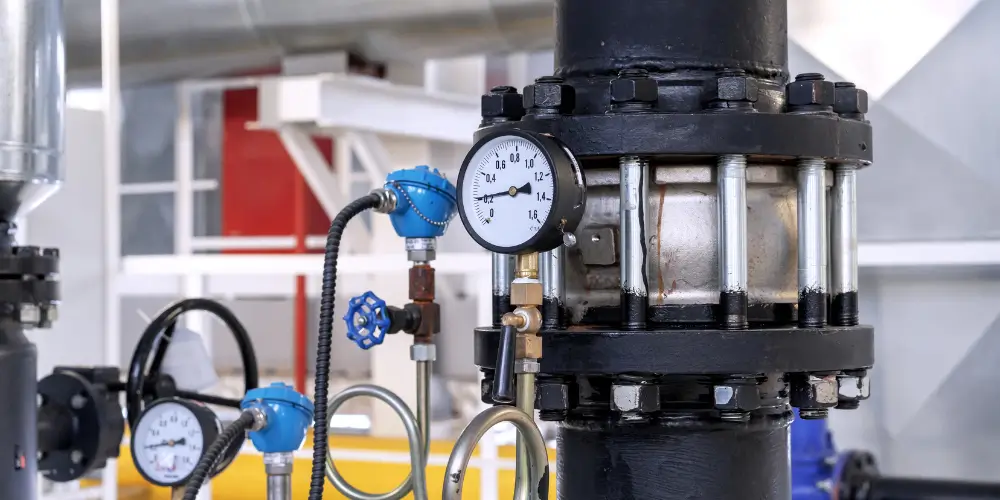

Quick Checks: Pressure, Valves, and Thermostat

Before assuming a radiator needs bleeding or a power flush, a few fast system-wide checks can confirm whether the fault is being caused or worsened by basic setup issues.

First, system pressure should be within the boiler’s recommended range (often around 1–1.5 bar when cold). Too low can starve circulation; too high can trigger safety cut-outs. Re-pressurising is usually straightforward via the filling loop, then isolating it to avoid overfilling.

Next, confirm both radiator valves are open: the thermostatic radiator valve (TRV) and the lockshield. A half-closed lockshield or a stuck TRV pin can limit flow, leaving the bottom cool. If the TRV head is set low, raise it and listen for flow changes. Finally, check the room thermostat and boiler controls. Incorrect schedules, low setpoints, or weather compensation settings can keep flow temperatures too mild to drive full heat through the panel.

Bleed the Radiator: When It Fixes Cold Bottoms

Although a cold bottom on a radiator is often linked to restricted circulation, bleeding can resolve it when trapped air interrupts flow through the panel, causing heat to collect at the top while the lower section stays cool.

Air pockets often form after refilling a system, minor maintenance, or seasonal shutdowns, and they can prevent hot water from fully occupying the radiator. Bleeding restores control: the panel heats evenly, noise reduces, and the system runs with less wasted effort.

1. Turn the heating off, let the radiator cool, and open the bleed valve with a key while holding a cloth and a container.
2. Release air until a steady stream of water appears, then close the valve firmly without over-tightening.
3. Recheck boiler pressure afterwards and top up only if it has dropped. Understanding an optimal boiler pressure levels is very important.

If the radiator’s bottom warms within minutes of a restart, the fix is simply to reclaim the flow.

Is It Sludge (Magnetite)? Signs of a Blocked Radiator

Why does a radiator stay stubbornly cold at the bottom even after bleeding? A common culprit is sludge, often magnetite: black, magnetic iron-oxide debris that settles in low-flow areas and chokes the lower channels.The top heats because some hot water still passes, but circulation through the bottom stalls.

Clear signs point to a blockage rather than trapped air. The radiator may take a long time to warm, then feel sharply “two-tone” (hot at the top, cold at the bottom). The lockshield valve can be fully opened with little change. Tapping the lower panel may sound dull and heavy, not hollow. Bleed water may run dark, gritty, or inky. Nearby pipework can be hot on the inlet side yet lukewarm on the return, indicating Radiator Hot at Top and Cold at Bottom.

If only one radiator shows the pattern, the obstruction is local; if several do, the contamination is likely system-wide.

Flush Choices: DIY Rinse vs Chemical Flush vs Powerflush

Choose the flushing method that matches the severity and spread of the blockage: a simple DIY drain-and-rinse can clear mild buildup, a chemical flush targets stubborn magnetite and scale within the circuit, and a professional powerflush uses high-velocity flow and agitation to quickly dislodge heavy sludge. Each option balances trade-offs among cost, disruption, and risk with the degree of circulation compromise.

DIY rinsing suits single radiators and lets the homeowner stay in control: isolate, drain, remove, and hose through until water runs clear, then refill with inhibitor. Chemical flushing is for systems that still circulate but show recurring cold spots; it requires careful dosing, run time, and thorough neutral rinsing to avoid seal or pump stress.

Powerflushing is best when multiple radiators are affected, or flow is severely restricted; it’s faster but can expose weak joints, so pre-checks are essential.

Decision hinges on budget, time, and tolerance for hands-on work.

1. DIY rinse: low cost, localised, manual.
2. Chemical flush: moderate cost, broader reach, controlled.
3. Powerflush: higher cost, whole-system, aggressive.

Balance Your Radiators for Even Heat

When some radiators heat quickly while others stay lukewarm, the issue is often an imbalance rather than sludge or trapped air. Balancing restores fair flow so every room can reach comfort without forcing the boiler to work harder than necessary. It puts control back in the homeowner’s hands. Begin with all radiators fully open and the heating running. Measure the temperature drop between the flow pipe and return pipe at each radiator; a consistent drop across the system signals even sharing, helping to address Radiator Hot at Top and Cold at Bottom.

Start near the boiler: slightly reduce flow through the hottest radiators so more hot water is free to travel to the cooler, distant ones. Make small adjustments, then wait for temperatures to settle before changing anything else. Record each change to avoid chasing the problem in circles.

Proper balancing reduces cold bottoms caused by weak circulation, shortens warm-up time, and helps the entire system run quietly and efficiently.

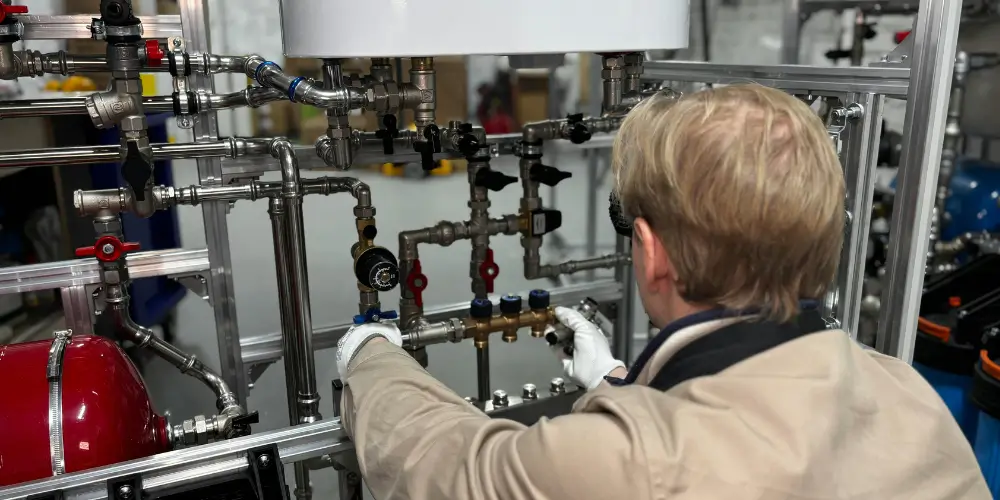

TRVs, Lockshields, and Pipe Faults That Stop Flow

Several common hardware and piping faults can block circulation even in a well-balanced system: a stuck thermostatic radiator valve (TRV) pin, a lockshield valve left too far closed or seized, or a pipework restriction, such as a kink, collapsed lining, or debris at an elbow.

When the flow is throttled, hot water enters the radiator but cannot sweep through the lower panels, leaving the top hot and the bottom cool.

1. TRV pin stuck down: the head may “click”, yet the pin fails to spring back; gentle tapping and pin movement checks can restore free travel.
2. Lockshield mis-set or seized: if nearly shut, it starves the radiator; if seized, it prevents adjustment, so flow stays restricted.
3. Pipe restriction or air trap: crushed microbore, solder beads, or sludge at tees can act like a clamp, silently limiting circulation.

These checks support independent control of comfort without overworking the boiler.

Call an Engineer If You Spot These Warning Signs

Basic checks like freeing a TRV pin or opening a lockshield can restore flow, but some radiator temperature problems point to faults that should not be handled as DIY. If the boiler regularly locks out, shows fault codes, or loses pressure after topping up, an engineer should investigate for leaks, failed expansion vessels, or safety-valve issues.

Loud banging, kettling, or persistent air returning after bleeding can indicate pump failure, blocked heat exchangers, or system contamination requiring powerflushing and chemical treatment. Brown or black water, magnetite sludge, and multiple cold-bottom radiators suggest widespread corrosion and poor filtration, often linked to Radiator Hot at Top and Cold at Bottom.

Any sign of water near electrics, scorched wiring, or a hot pump casing demands immediate shutdown at the isolator. Gas odors, flue staining, or carbon monoxide alarm activation require leaving the property and calling qualified help. Freedom comes from safe, reliable heat without risky shortcuts.

Frequently Asked Questions

Conclusion

A radiator that is hot at the top and cold at the bottom usually indicates poor water circulation rather than an air pocket. After confirming boiler pressure and that valves and thermostats are open, bleeding may help only if trapped air is present. Persistent cold bottoms often indicate sludge or a restriction, requiring flushing or a powerflush. Correct balancing can also restore even heat. If leaks, repeated pressure loss, strange noises, or boiler faults appear, an engineer should be called to address Radiator Hot at Top and Cold at Bottom.
